Aluminum Magnesium Insulation Tiles

Aluminum Magnesium Insulation Tiles

Aluminum Magnesium Insulation Tiles, or AMI Tiles, are a type of roofing material that provides excellent insulation properties. They are available in two types, the basic AMI Tile and the reinforced AMI Tile. Both types offer the same level of insulation and protection, with the reinforced tiles offering added durability.

Product Description

Installation Parameters(multifunctional tiles)

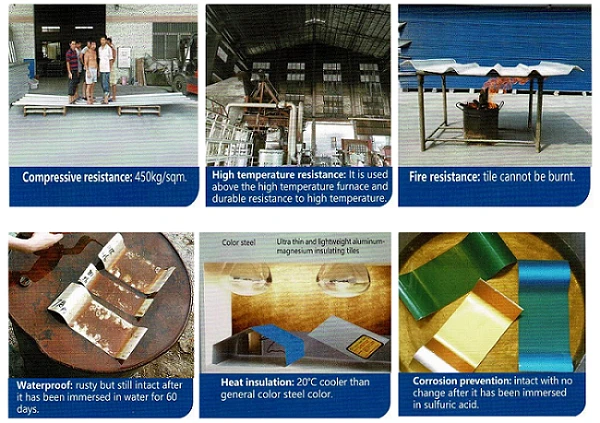

Product Performance Testing

Installation Method of The Product-Gold Character Shaped

Step 1: The tiles on the left and right sides of the highest point of the roof should be closely attached.

Step 2: It is recommended to seal the gap after tightening with waterproof tape or foam adhesive.

Step 3: Cover the top tile.

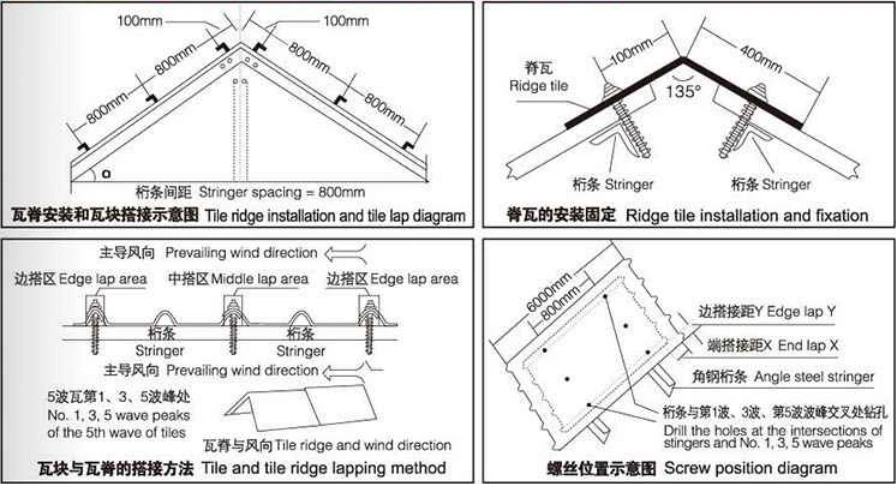

Tile ridge installation (as shown in the figure)

Stringer installation:

Strings generally use C-beam or angle bar, requiring stringers to be installed smoothly without any deformation, stringers must be kept parallel, and the spacing between them should be 800mm as the standard.

Self-tapping screws installation and use:

At No. 1, 3, 5 wave peaks of the 5th wave of tiles, after the self-tapping screws are provided with the waterproof caps, the tiles shall be fixed on the stringers in proper order, and the self-tapping screws shall not be excessively tightened or loosened to avoid that they are cracked due to the stress arising from heat expansion and cold contraction.

Laying sequence of the tiles:

The laying of tiles should be the opposite of the prevailing local perennial wind direction, that is, the exposed side of the tiles shall be back to the dominant wind direction. The H-shaped lapping laying sequence shall be used on the roof.

Installation method of the product - arc shaped

Introduction to Insulating Tile Arc:
Due to the influence of product thickness, hardness and material, no products of the same type in the market can be installed in curved shapes. In order to meet the installation needs of curved factory buildings, our company has launched a complete set of solutions for the production and installation of curved multifunctional insulation roof tiles after years of practical research. filling the gap in this technology of the product in the industry!

Characteristic
	Resin tile	Plastic tile	Zinc iron tile	Color steel tile	Cement,asbestos tile	Our Insulating Tiles
Heat insulation	Poor heat insulation performance, small indoor and outdoor temperature difference.	Poor thermal insulation, easy to conduct heat. The temperature difference between indoor and outdoor is small, and it is easy to age and deformation at high temperature.	Poor heat insulation performance, easy heat conduction.higher indoor temperature than the outdoor temperature.	Poor heat insulation performance, easy heat conduction,higher indoor temperature than the outdoor temperature.	Thick tile body, denending on the thickness of a certain thermal insulation effect.	Low thermal conductivity, high thermal insulation effect.
Alkali resistance	Good alkali resistance	Easy aging, brittleness and wind cracking	Material is easy to react with acid and alkali, becoming rusty, leaking and cannot be remedied.	Acid and alkali resistance depends on the performance of the surface coating, and it is prone to acid-base reaction and fade after the surface coating is damaged	Easy aging,brittleness and wind cracking	Strong acid and alkali resistance
Fire resistance	Poor fire resistance, inflammability poor security, easiness to produce harmful gases.	Poor fire resistance, inflammability poor security, easiness to produce harmful gases.	Normal fire resistance, easy deformation	Good fire resistance	Normal fire resistance, easiness to produce harmful gases.	Good fire resistance, product material itself is fire resistant, and high security.
Environment al protection property	Tile body is thin with poor sound insulation, and is prone to produce greater noise bad weather.	Tile body is thin with poor sound insulation, and is prone to produce greater noise bad weather.	Tile body is thin with poor sound insulation, and is prone to produce greater noise bad weather.	Tile body is thin with poor sound insulation, and is prone to produce greater noise bad weather.	Thick tile body has a certain noise insulation property, and it contains asbestos and other carcinogenic substances.	Energy-saving and environmental protection, mothproof, sound-absorbing properties with noncarcinogenic and other harmful substances.
Strength	Low strength, impact resistance, poor performance, easy cracking.	Low strength, impact resistance, poor performance, easy cracking.	Low strength, good flexibility, poor impact resistance.	Low strength, good flexibility, poor impact resistance.	Brittleness, easy fracturing	High strength, good toughness, not easy to cause deformation and cracking.
Wind resistance	Tile body is thin and easy to be blown by typhoon.	Tile body is thin and easy to be blown by typhoon.	Tile body is thin and easy to be blown by typhoon.	Tile body is thin and easy to be blown by typhoon.	Tile body is thick and can resist typhoon.	Effective resistance against snowstorm.
Practicality	Small lap, long length, high practicality. About 88%	Small lap, long length, high practicality. About 88%	Small lap, long length, high practicality. About 83%	Small lap, long length, high practicality. About 84%	Short and single specification, too many laps, poor practicality. About 62%	Lap joints are small with the moderate length, which are practical. About 88%

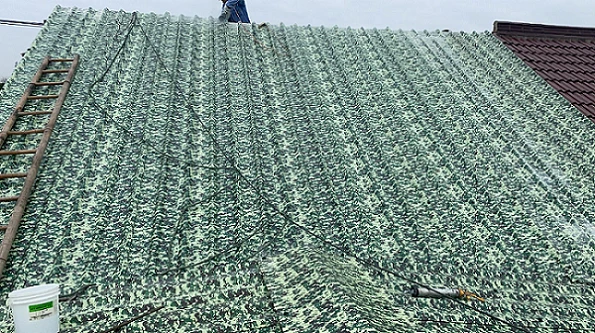

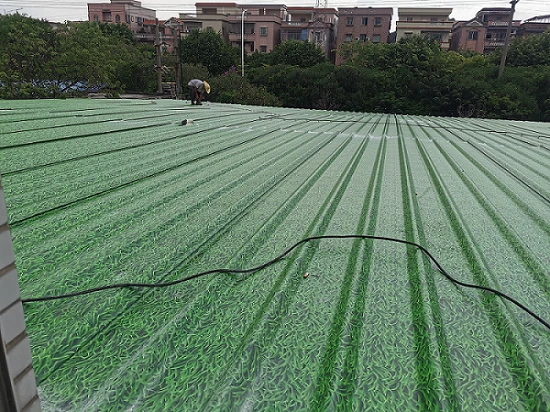

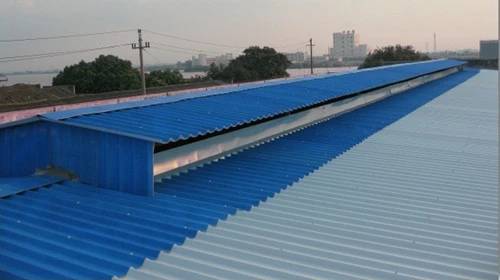

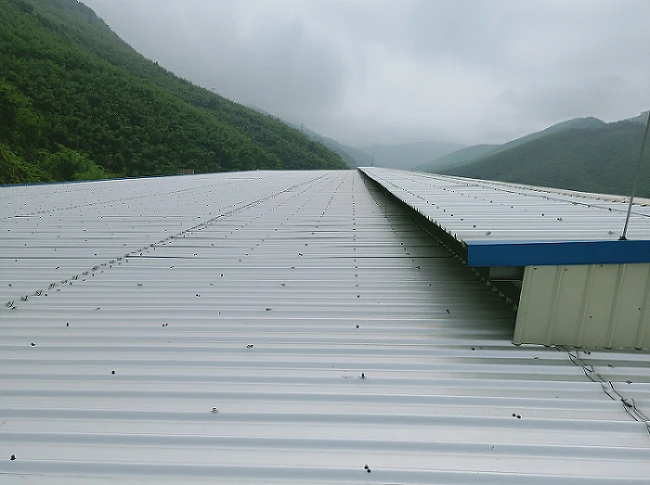

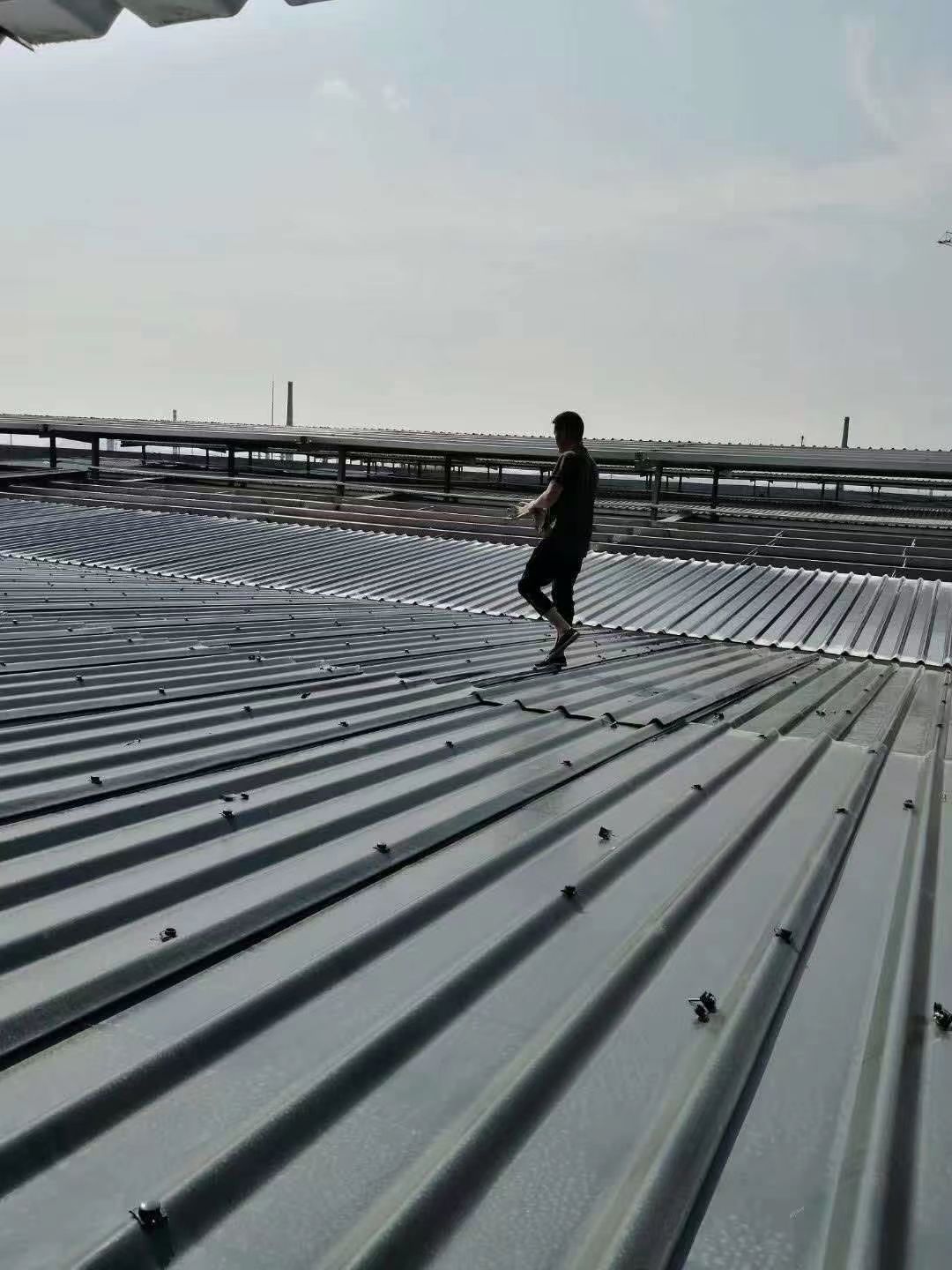

Engineering Cases

One of the most significant benefits of Aluminum Magnesium Insulation Tiles is their outstanding performance. Aside from insulation, the tiles have a variety of other features that make them ideal for a wide range of applications. These features include:

1. Fire-proof and A1 grade fire protection

2. Corrosion-resistance

3. High-temperature resistance

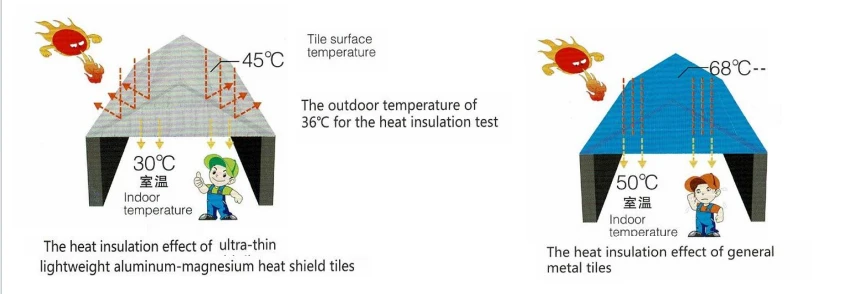

4. Thermal insulation

5. Noise reduction and sound insulation

6. Lightning-insulation performance

7. Wind-resistant and snow-resistant

8. Environmentally friendly and energy-saving

Function and Advantages

Aluminum Magnesium Insulation Tiles have a broad range of functions and advantages. They provide reliable thermal insulation, which can help reduce energy consumption and bills. They are lightweight and easy to install, making them a popular choice for builders and architects. The tiles also provide excellent sound insulation, soundproofing, and protection against lightning, making them an ideal roofing material for both residential and commercial properties.

Precautions and Importance

It is essential to follow proper installation procedures to ensure the aluminum-magnesium insulation tiles' longevity and performance. Proper installation includes proper handling, placement, and attachment, among other things. Due to the tiles' lightweight nature, it is important to ensure that they are securely anchored to the structure. This can be done by welding them together or using screws and other fasteners.

Application Areas

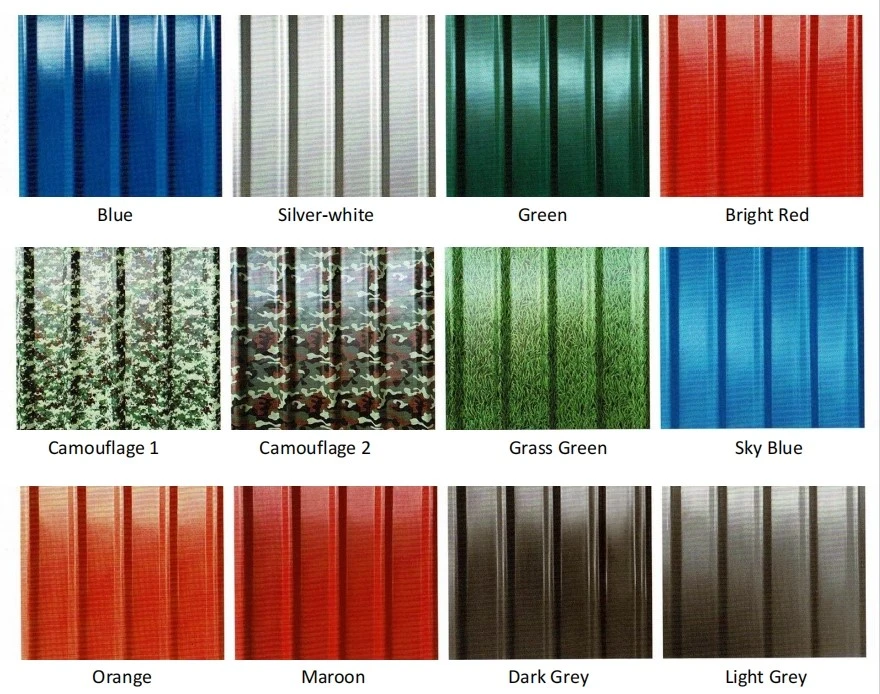

Aluminum Magnesium Insulation Tiles are suitable for various applications, including roofs, walls, and ceilings. They are commonly used in commercial and residential buildings, as well as industrial facilities, public areas, and agricultural structures. The tiles come in a wide range of colors and designs, making them ideal for matching various architectural styles.

Why Choose Us?

When it comes to high-quality and affordable Aluminum Magnesium Insulation Tiles, our company is the perfect choice. Not only do we offer competitive prices, but we also provide exceptional customer service and support. Our team of experts is always available to answer any questions or concerns you may have about our products. With our help, you can enjoy the many benefits of aluminum-magnesium insulation tiles, knowing that you have made the right choice.
