Product Description

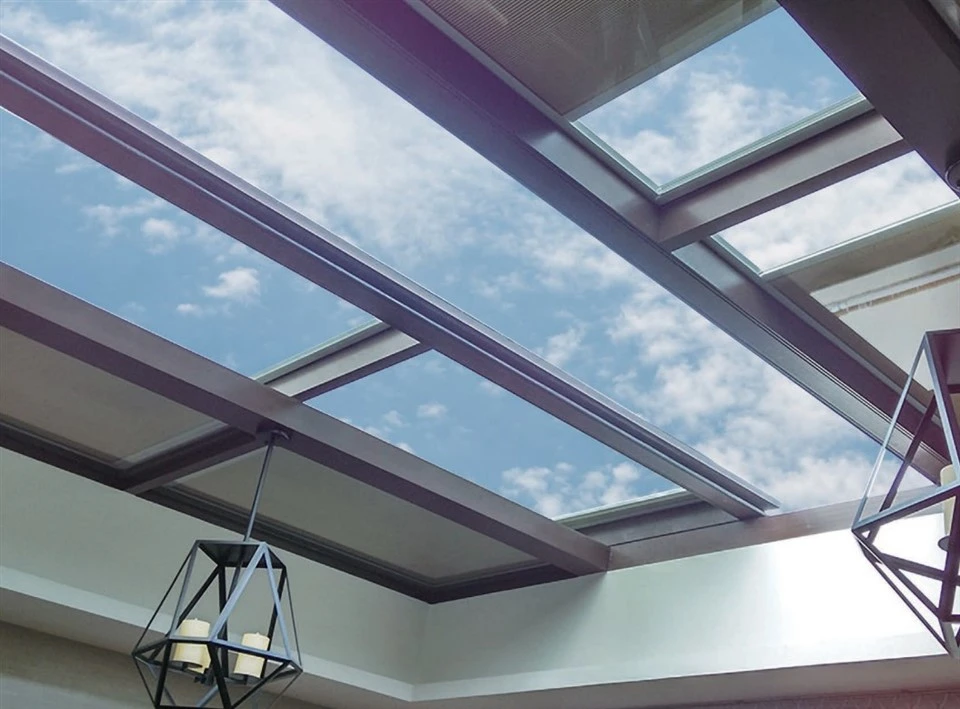

Translation Skylight, also known as a sliding skylight, is a type of window that can be horizontally opened and closed. It is designed to provide natural light and ventilation to a space, while also offering the convenience of being able to easily adjust the amount of sunlight and air flow.
Partial parameters and configurations
|
Material: |
Main structure T5 6063 high-strength aluminum alloy |
|
Profile specification: |
120*145/94* 146 |
|
Processing technology: |
Glue injection corner code splicing |
|
Control method: |
electric remote control |
|
Installation angle: |
0-5 degrees daylighting roof or concrete roof |
|
Surface treatment: |
whole window electrostatic powder treatment(color optional) |
|
Functional configuration: |
electric, remote control, rain sensing with added lighting |
|
Specification and size: |
maximum span of 4.8m in areas without snow load (snow pressure), no live load 5kg/m, snow load (snow pressure), with a maximum span of 3.8m in the area |
|
Glass configuration: |
5+1.14+5+20A+5 laminated with hollow tempered glass and standard 5+1.14PVB+5 |
|
Standard sunroof configuration: |
built-in motor, manual opening and closing device, touch screen controller, and linkage controller. |
|
Intelligent options: |
voice control, mobile remote control, electric sunshade, rain sensor equipped with opening and closing device, manual window opening and closing can be achieved after power outage. |
Product Features:
*Use automotive grade adhesive strips (15 years non aging)
* Equipped with a rain sensor to automatically close windows during rain,
* Adopting ultra quiet large torque short motor to solve motor vibration and noise problems.
Solve the thermal protection problem of the motor running for 4 minutes, and the motor can operate continuously for an extended period of time.

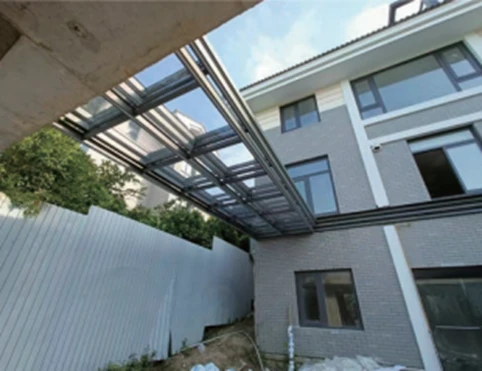

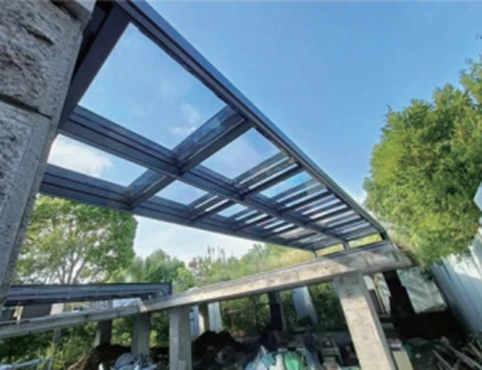

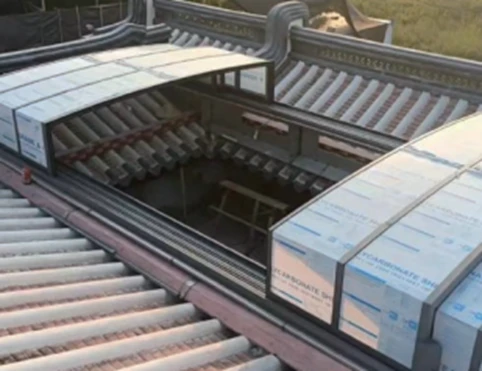

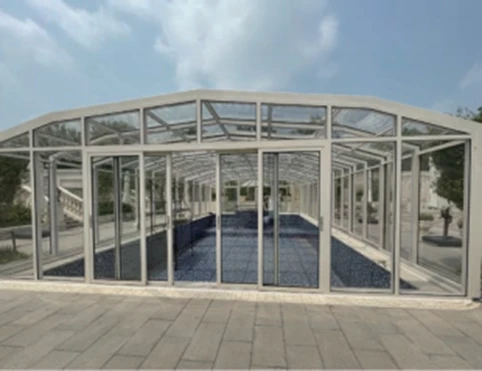

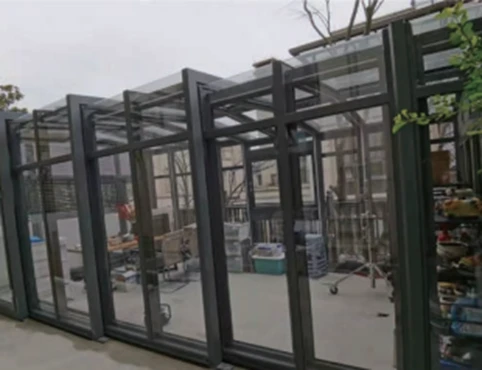

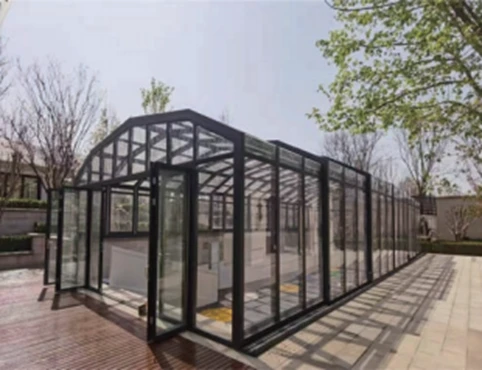

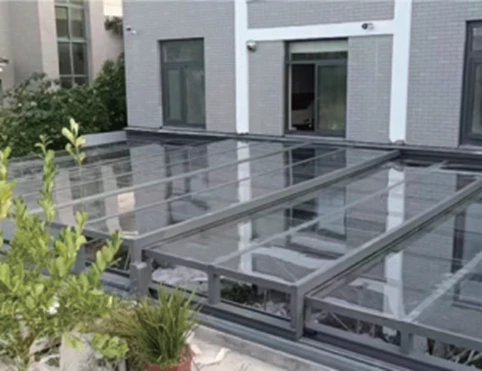

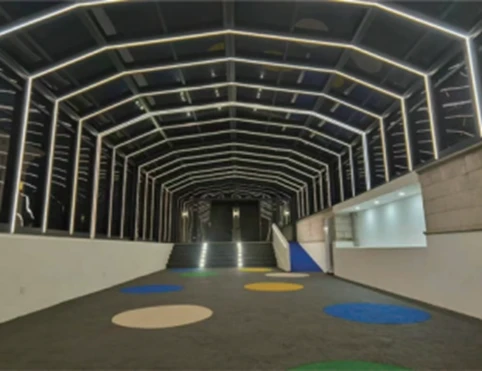

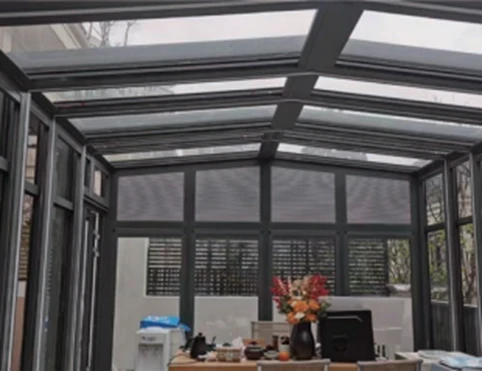

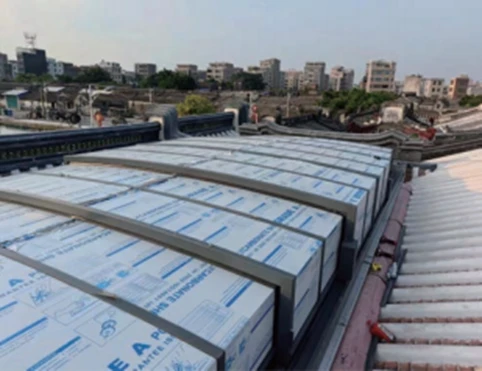

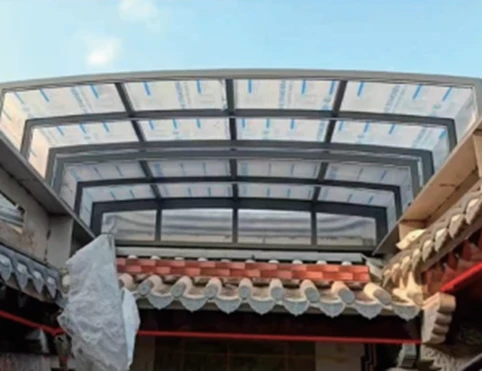

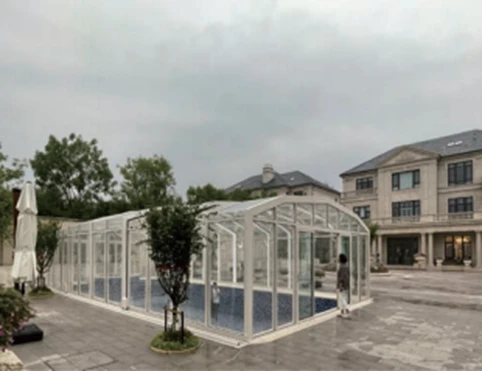

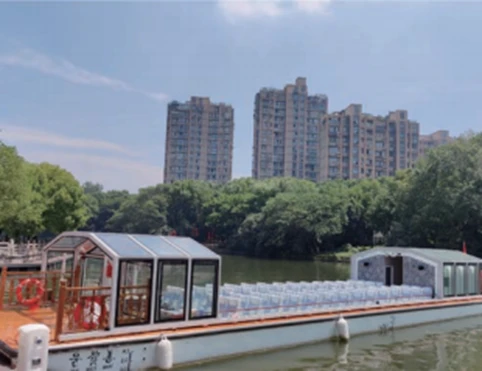

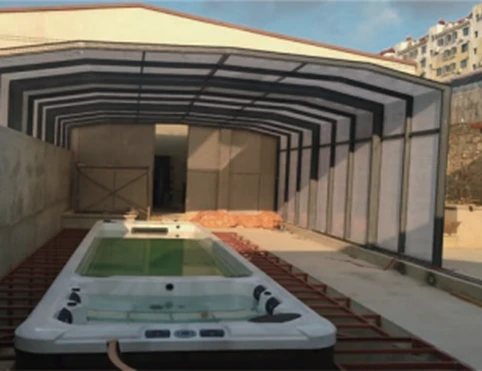

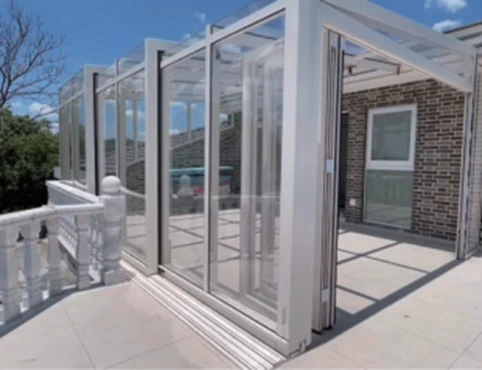

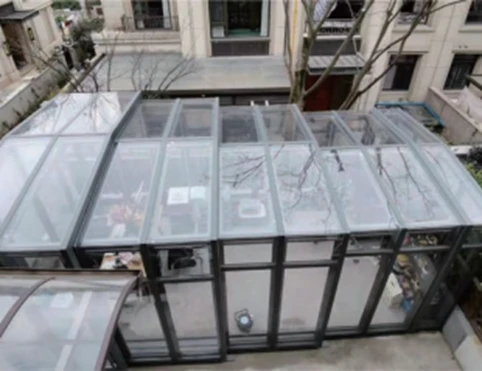

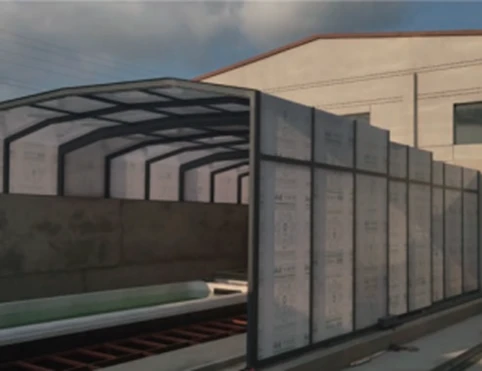

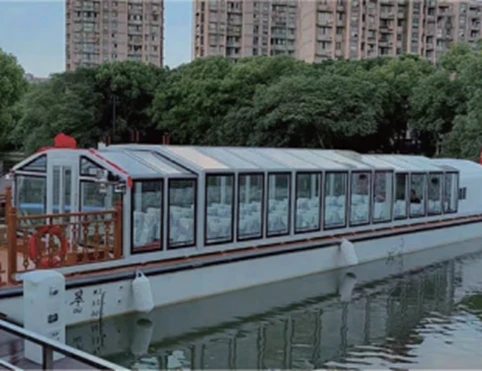

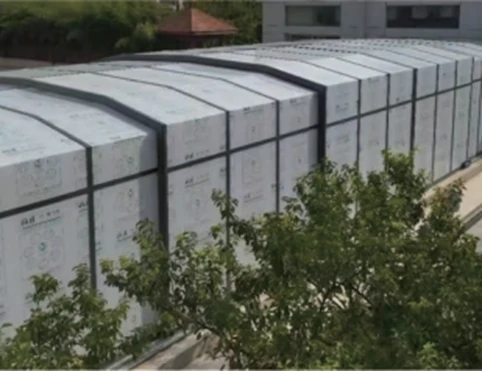

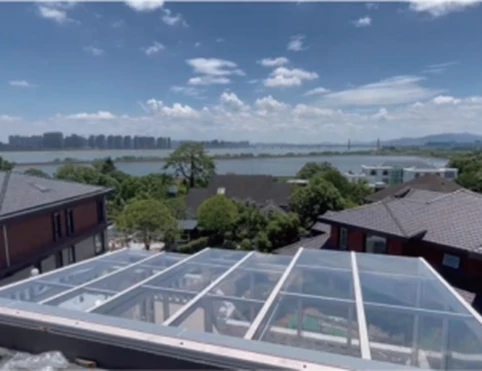

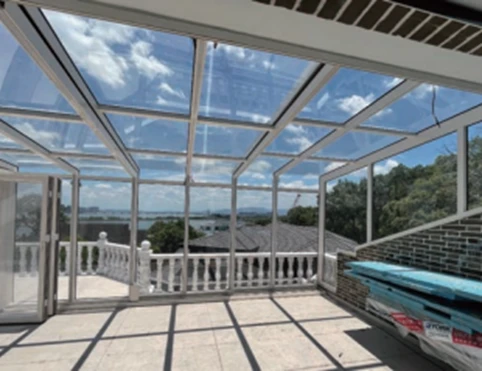

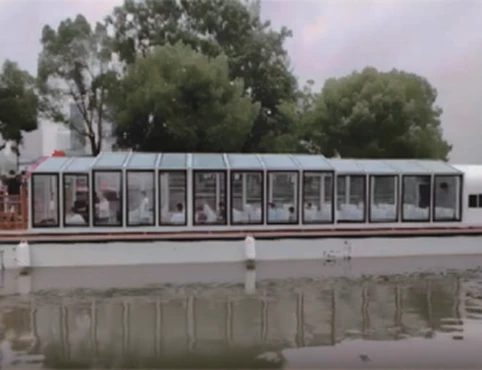

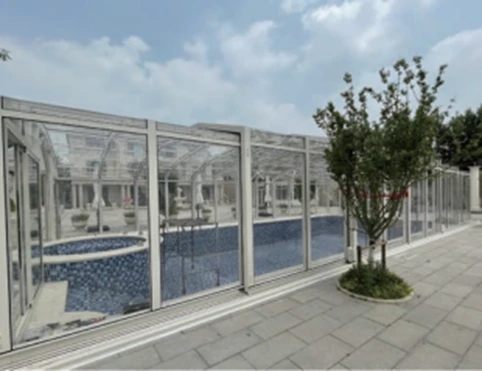

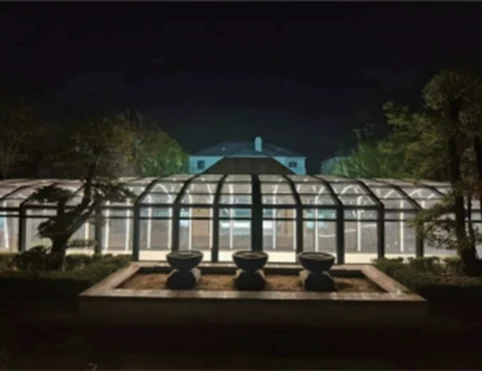

Realistic case for reference
