Introductions:
The Semi-hidden frame curtain wall is divided into two types: horizontal and vertical, or vertical and horizontal. No matter what kind of semi-hidden frame curtain wall, one corresponding side is bonded with structural adhesive to form a glass assembly component, and the other corresponding side is assembled with aluminum alloy inlaid groove glass.
Product Details
Dimensions | Customized, According to the client's specific requirement. |
Profile Material | Aluminum alloy profile Profile Wall thickness:2.5/3.0mm Color: as per the RAL colour atla |
Glass Option | Hollow glass, laminated glass, tempered glass, Low-E glass, floated glass, reflective glass single glazing /double glazing Single : 6/8/10/12mm Double:5+9A/12A+5 6+9A/12A+6 8+9A/12A+8, 6.38mm, 8.76mm 10.76mm 11.52mm etc Color:clear, ford blue reflective, green reflective, LOW-E. etc. Any other glass thickness according to customer's requirements. |
Hardwares | Handle, lock, sealing strip, friction hinge,etc. High quality made in China/ Germany(ROTO) |
Silicon | Chinese top brand |
other materials | Fire prevention board, Foam Rod, steel parts. double-sided adhesive tape,weatherproof sealants |
Finishing | Powder coated, Fluorocarbon, and Anodizing |
Applicable place | Schools, Restaurants, Commercial Buildings and Residential etc |
Packing | Bubble bag+Wooden frame |
Advantages:
1. The semi-hidden frame curtain wall has excellent anti-vibration properties, because part of the control panel is combined with a metal material frame with weather-resistant glue. The weather-resistant glue has good ductility and can digest and absorb vibration and deformation.
2. The semi-hidden frame curtain wall has a good practical effect of decoration. Because of its bright colors, it is as crystal clear and translucent as spar. The surface of semi-hiden frame curtain wall has less exposed metal material structure, and the laminated glass has good durability and looks very beautiful.
Application scene:
The semi-hidden frame curtain wall is mostly used in medium and high-rise buildings.

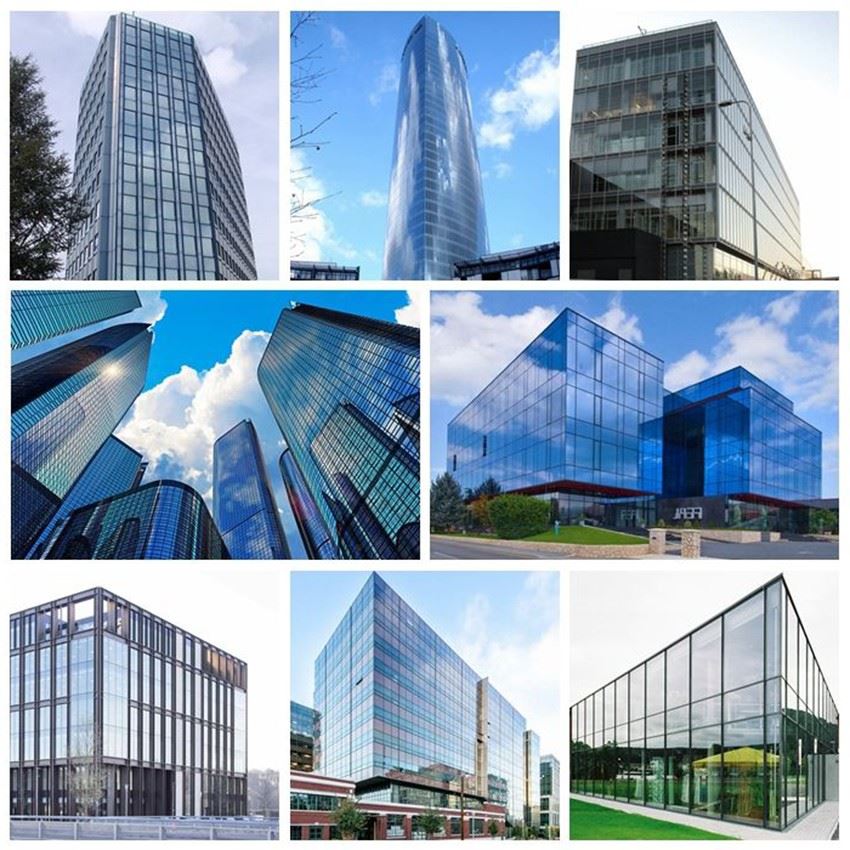

Cases Show
Installation Methods
Vertical hidden horizontal not hidden
Method A:
It is to fix the coated glass in the inlaid groove of the aluminum alloy profile at the top and bottom, form a gap groove between the glass and the vertical bar surface, and then fill the gap groove with structural adhesive on site to form a vertical structural adhesive glass assembly system. Generally, it is limited to buildings with no installation gap between the building and the aluminum alloy frame system, and should not be used unless absolutely necessary.
Method B,
The glass is pasted on the glass frame with installation grooves on the two vertical sides, and the vertical side of the glass frame is fixed on the vertical pole of the aluminum alloy frame system with a fixing piece; The upper and lower horizontal edges of the glass are fixed in the inlaid groove of the groove beam of the aluminum alloy frame. The bonding between the glass and the vertical edge of the glass frame is processed in the special workshop in the factory and then transported to the site for installation. The bonding quality is guaranteed.
Horizontal and vertical invisible
Method A:
Namely, a pressing plate is added to the horizontal or vertical edge of the full hidden frame glass curtain wall to form a semi hidden frame curtain wall with horizontal or vertical edges. This pressing plate is not only a horizontal or vertical decorative line, but also a second fixation of the glass.
Method B,
The structural glazing method is adopted. The method is to bond the glass to the glass frame with installation grooves on the upper and lower sides. The upper frame of the glass frame is supported on the beam of the aluminum alloy frame system. The lower frame is fixed on the lower beam with a fixing piece, while the vertical edge is fixed on the lower beam with a pressing plate, while the vertical edge is fixed in the glass slot of the vertical bar with a pressing plate, forming a long strip of glass separated from top to bottom by the vertical bar pressing plate. It is not allowed to inject glue on site if it is hidden horizontally or vertically.
ABOUT US
Foshan Ivy Building Materials Co., Ltd considers innovation as the soul of company, which drive us to develop new items every year. Especially for the good idea from our clients, we will support as we can help make them come true.
In addition, since we have our own door and window factory, which are good at kinds of aluminum doors and windows,aluminum furniture, shower enclosure and decorative curtain wall, we make really excellent technical support.
We are committed to high quality, professional service and favourable price all the time, We warmly welcome your contact. Expecting for our close and win-win cooperation in near future.
FAQ
Q1:What’s your MOQ?
A: Generally, there is no MOQ for us, Sanjing glass will give you more discount if quantity more.
Q2:Can you send me some samples to check your quality?
A:Sure, we could send the free samples (except special deep processing glass aluminum alloy profile,) for you any time. we will refund the courier charge for you once we start business.
Q4: What is your delivery time?
A: 25-35 days after deposit and drawing confirmed.
Q5: What is your warranty ? What do we do in case of problems?
A:10 years quality warranty is provided, including frame unfading nor peel-off, hardware and accessories working properly under correct operation.
Q6: What kind of service will you provide?
A:We are able to provide the engineering as well as supervising service to guide installation our windows and doors.
