DU135 is a panoramic sliding door built for both outdoor and indoor use, centered around slim frames to let in as much natural light and unobstructed views as possible. It’s part of the slim-frame system doors and windows family, made to mix modern looks with top-notch performance.
Send Inquiry

Products Description



In modern building design-especially for villas, mansions, or high-end clubs-there's a huge hunger for doors that aren't just pretty but also work really well. People want more sunlight, clearer views, and doors that can handle all sorts of environments-like coastal areas with salty air or landlocked spots with crazy weather shifts. And let's not forget about security and energy efficiency-those matter a lot too.



Partial parameters and configurations



 Area  Floor height (m)  Applicable models and maximum height of door frame (mm)  Maximum width of door frame (mm)
Coastal (A) ≤10 DU135, ≤2800 Infinity
Coastal (A) 10 - 60 DU135, ≤2800 Infinity
Landlocked (C) ≤10 DU135, ≤2800 Infinity
Landlocked (C) 10 - 60 DU135, ≤2800 Infinity



 Product function  DU135
Profile structure Broken Bridge
Electric
90 degree angle without column
Glass protective fence
Hidden mesh
Track pre embedded obstacle free
The lower rail cover plate is compatible with ceramic tile and wooden flooring
RC3 three - level anti pry locking system
Split upper track
Glass thickness 34mm



Features & Benefits



  • Strong Aluminum Profile: The whole door uses 6063-T6 aluminum alloy. This material gives the door serious structural strength, so it's durable and can survive different weather without bending or breaking.
  • Top-Tier Sealing System: The self-lubricating, low-friction sealing is awesome. It has multiple seals, so water stays out totally, and wind can't sneak through. Plus, once assembled, the decorative rubber strips on the glass sides are smooth and clean-no weird lines blocking your view.
  • Smooth-Sliding Pulleys: There are different pulley setups for different track types and door weights. We use materials like stainless steel and POM special nylon, so the door slides easily for years without getting stuck or wearing out fast.
  • Secure Lock Options: You get two choices here-RC3 anti-burglar lock and multi-point lock.
  • Smart Insect Screens: DU135 comes with two kinds of insect screens-independent and hidden. The hidden one has a vertical frame visible part that's only 98mm wide, so it keeps bugs out without messing up your view.
  • Sturdy Glass & Safety: The glass is 34mm thick-super sturdy. There's also a glass protective handrail option, so you stay safe without losing that open, panoramic vibe.
  • Flexible Track Choices: You can pick between manual or electric upper tracks. The manual one is sleek (only 60mm tall), and the electric one (125mm tall) adds ease for bigger doors.



Realistic case for reference

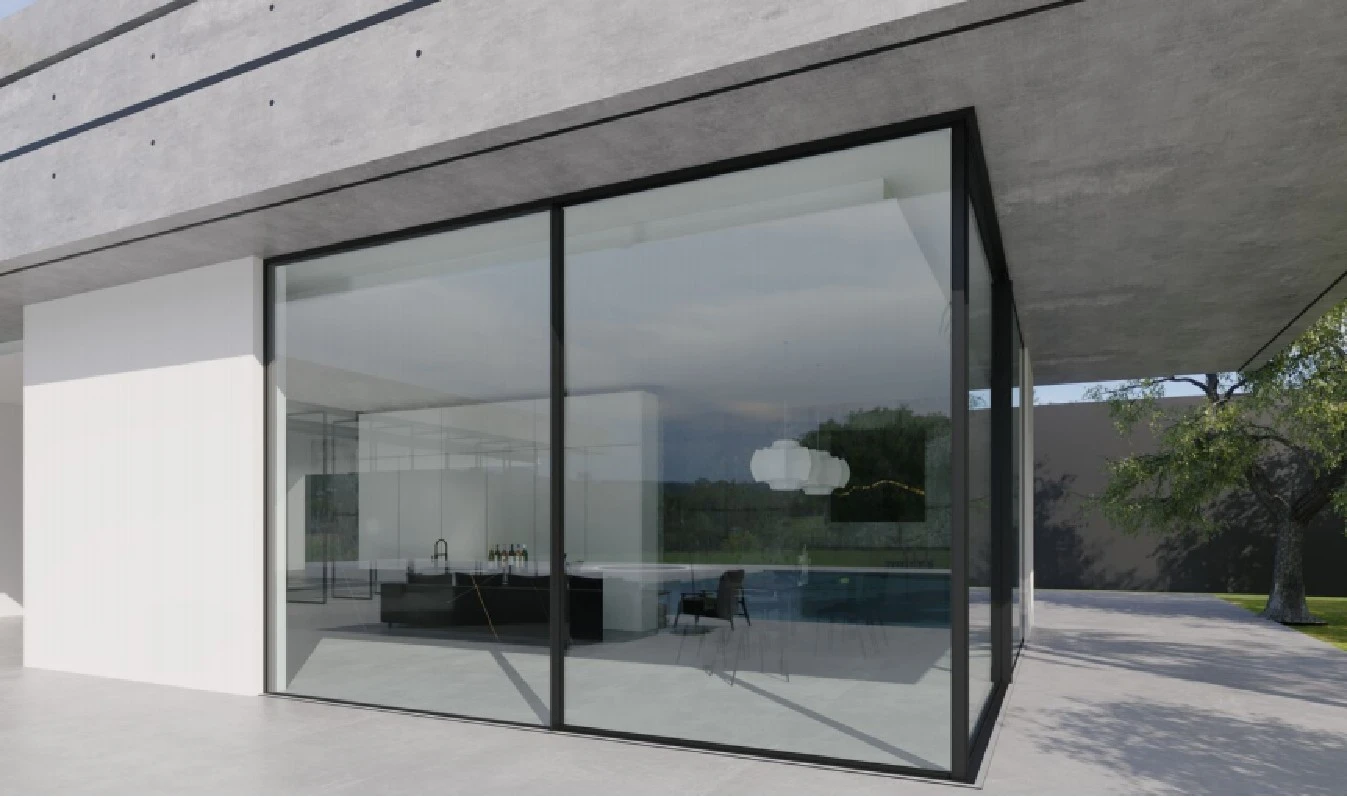

Sliding Door

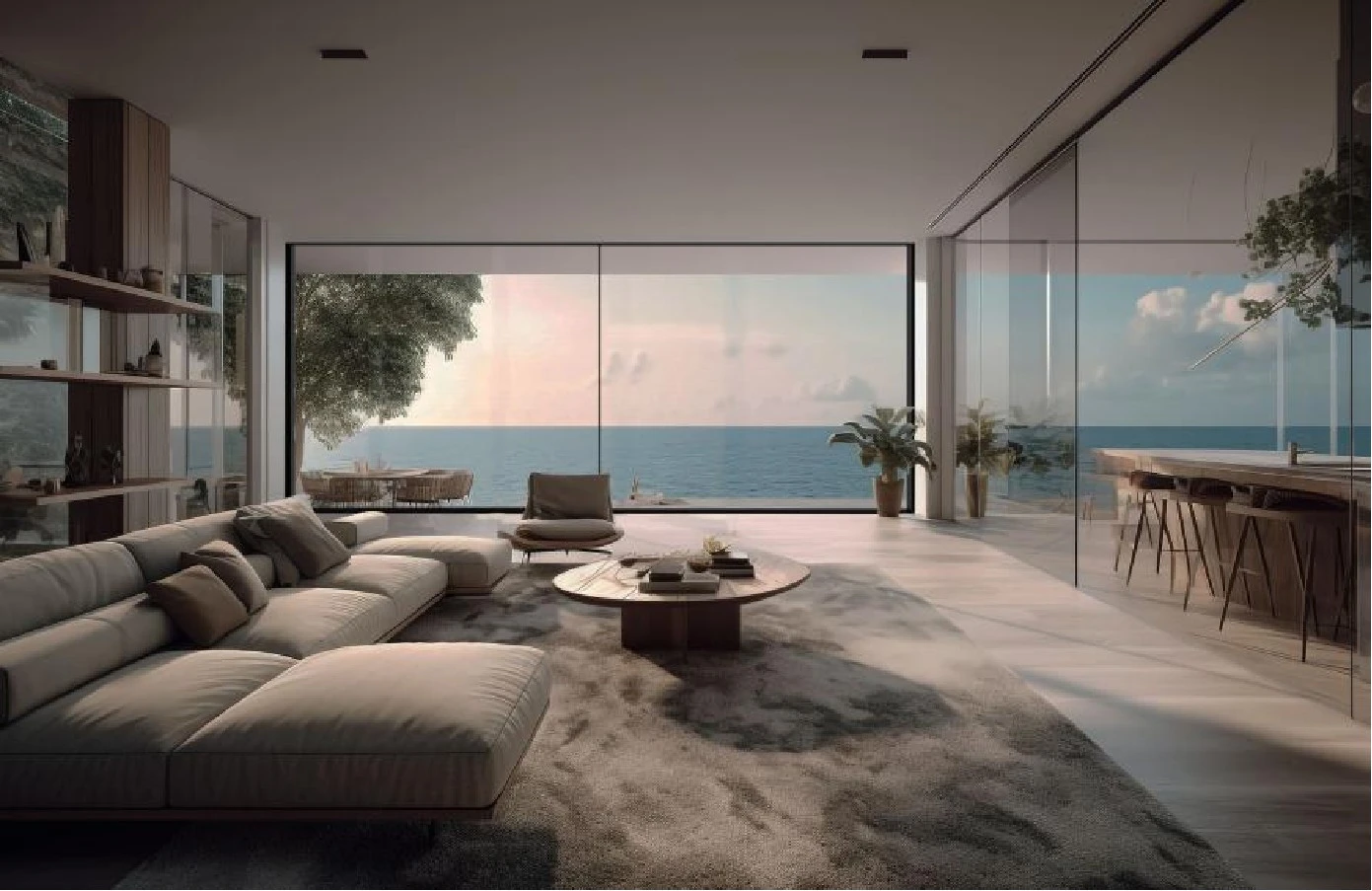

Panoramic Door

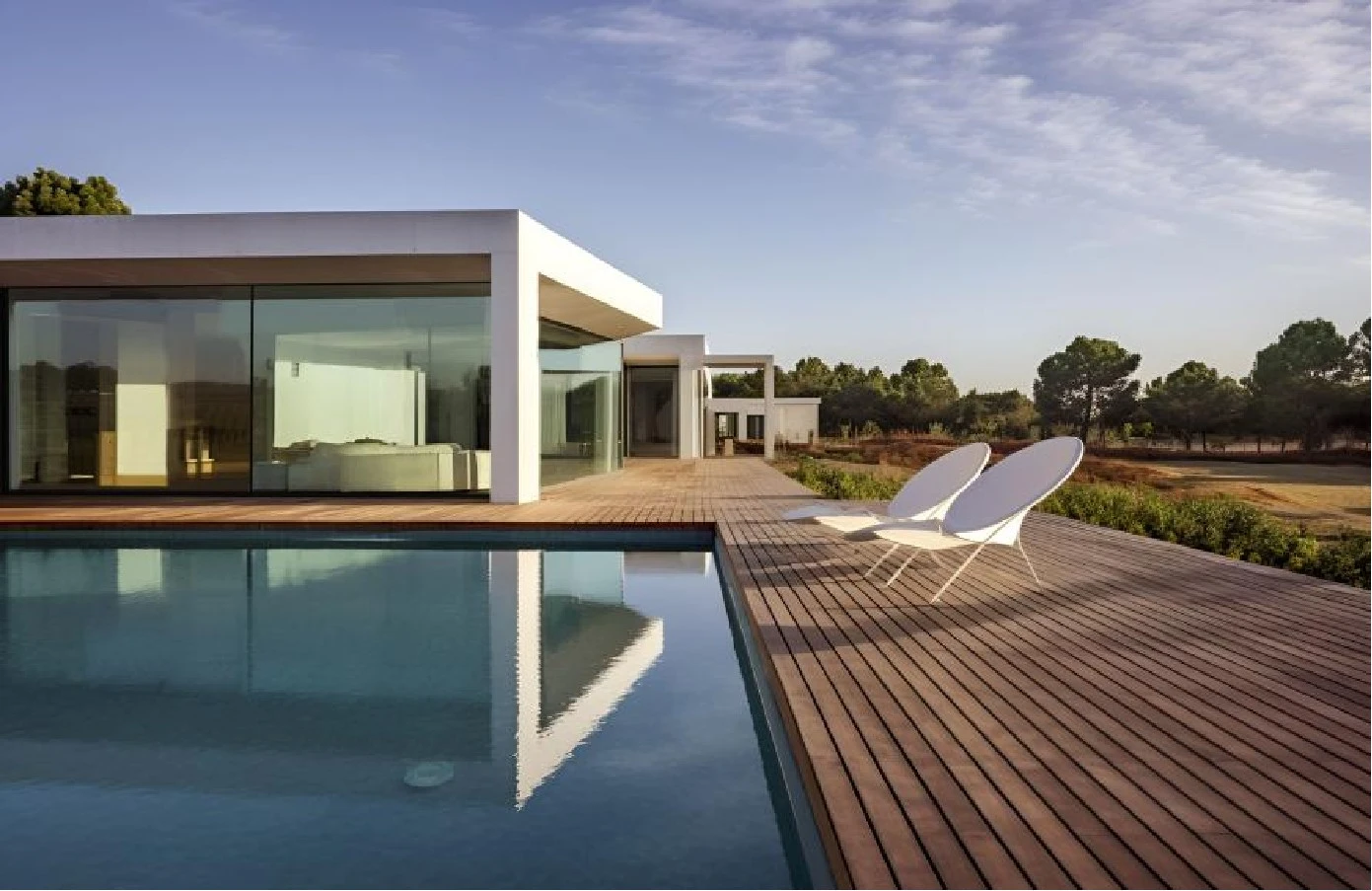

Panoramic Sliding Door
